steel and stainless steel Spring Hinge

Home / Catalog / Hinges / Spring Loaded Hinges / steel and stainless steel Spring Hinge

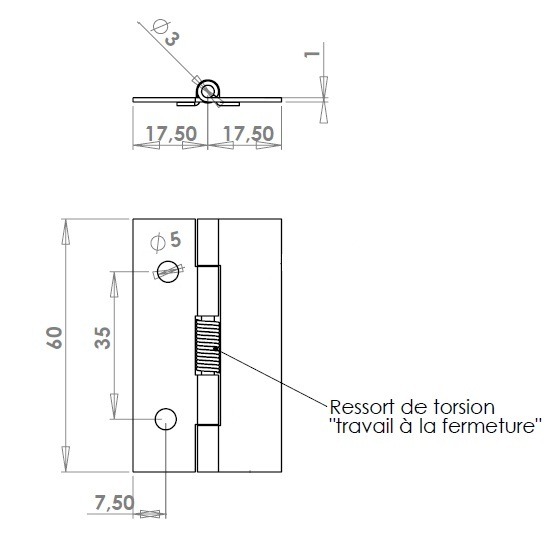

Technical sheet

Strength:
Closed hinge 0°: 0.05 Nm
Opened hinge 90° : 0.07 Nm
Opened hinge 180° : 0.09 Nm

Download IGS file

FIXATION	MATERIAL	FINISH	THEORETICAL WEIGHT kg/hundred	REFERENCES
With holes	Stainless steel	raw	2,200	CC.1476-IB*
With holes	steel	raw	2,200	CC.1476-BR
With holes	steel	White zinc coating	2,220	CC.1476-ZI

* Articles made on request
