Standard carrying handle

Home / Catalog / Handles / Back Plates / Standard Carrying Handles / Standard carrying handle
  • Standard Carrying Handles Standard Carrying Handle 1
  • Standard Carrying Handles Standard Carrying Handle 2
Description Technical sheet Supplements

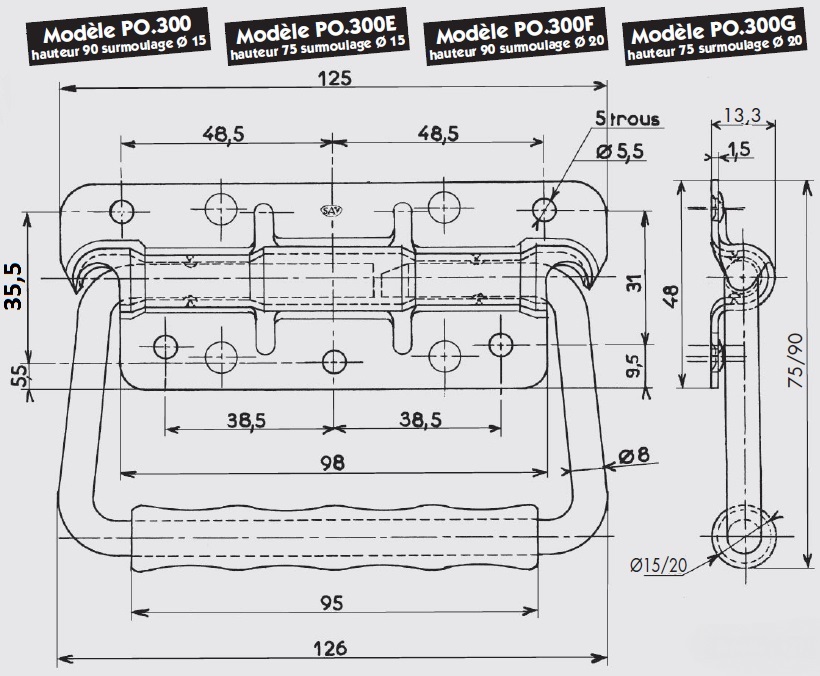

Stamped plate, 15/10' metal, 5 fixing holes Ø 5,5 mm or not drilled for welding.
Ring: drawn round wire Ø 8 mm, overmoulded polyethylene grip sleeve.
PO 300 : total height 90mm - plastic diam 15mm
PO 300 E.. : total height 75mm - plastic diam 15mm
PO 300 F.. : total height 90mm - plastic diam 20mm
PO 300 G.. : total height 75mm - plastic diam 20mm
Maximum load per handle (Steel): 40 kg. - ( Alu): 20 kg.
Heat resistance: 100°C
Consult us for any material or finish not listed in the table below
Download IGS file
MATERIALFINISHFIXATIONTHEORETICAL
WEIGHT
kg/cent		REFERENCES
Steelrawwith holes21,500PO.300-BR/EBR/FBR/GBR*
Steelrawwithout hole21,575PO.300-ABR
Steelyellow zinc with holes21,500PO.300-ZB*/EZB*/FZB*/GZB*
SteelWhite zinc with holes21,500PO.300-ZI/EZI*/FZI*/GZI*
Steelchrome platedwith holes21,500PO.300-CH*
Alloy lightrawwith holes8,050PO.300-AL
Stainless steel 18/8raw with holes21,500PO.300-IB/EIB*/FIB*/GIB*
Stainless steel 18/8rawwithout holeraw21,575PO.300-AIB
Stainless steel 18/8polishedwith holes21,500PO.300-IP*
* Articles made on request
