Spring loaded slotted carrying Handle

Home / Catalog / Handles / Back Plates / Spring Loaded Carrying Handles / Spring loaded slotted carrying Handle
  • Spring Loaded Carrying Handles Spring Loaded Slotted Carrying Handle 1
  • Spring Loaded Carrying Handles Spring Loaded Slotted Carrying Handle 2
Description Supplements

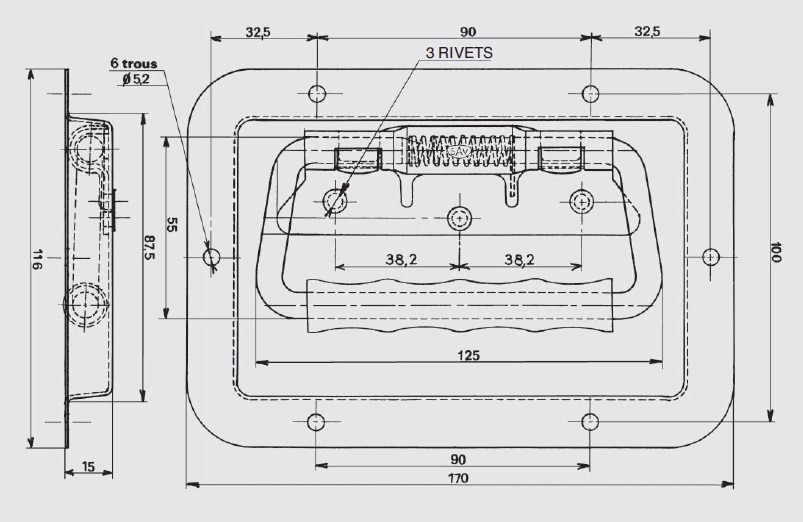

Plate: stamped, metal 8/10e, 6 fixing holes Ø 5,2mm.
- Handle plate: metal 15/10e.
- Ring: Round wire Ø 8mm, over-molded polyethylene sleeve
- Torsion spring: stainless steel piano wire 18/8
- 3 assembly rivets in aluminum or stainless steel 18/8 depending on the version.
Maximum load (steel) : 40kg (Alloy) : 20kg
Heat resistance : 100°C
Download IGS file
MATERIALFINISHFIXATIONTHEORETICAL
WEIGHT
kg/Hundred		REFERENCES
With holessteelyellow zinc coating33,500PR.1311-ZB*
With holessteelwhite zinc coating33,500PR.1311-ZI
With holesstainless steel 18/8raw34,400PR.1311-IB
With holeslight alloyoxydation13,300PR.1311-AO*
* Articles made on request
