Slinging SAV handle - Stop at 90°

Home / Catalog / Boxboard articles / Slinging handle / Slinging SAV handle - Stop at 90°
  • Slinging handle Slinging Sav Handle - Stop At 90° 1
  • Slinging handle Slinging Sav Handle - Stop At 90° 2
Description Technical sheet Supplements

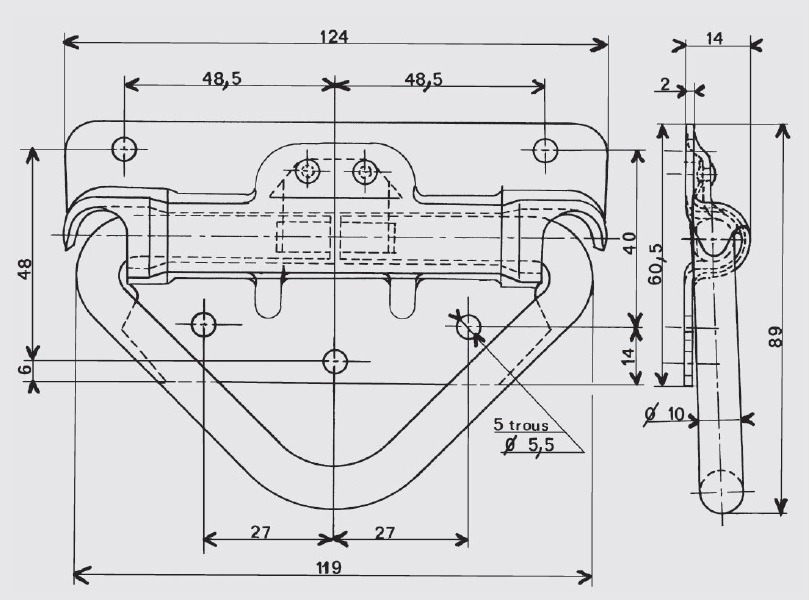

Plate: stamped, metal 20/10e, 5 holes Ø 5,5mm
- Ring: round wire Ø 10mm
- Leaf spring: stainless steel strip 18/8
- assembly elements: 2 drilled rivets Ø 3mm in stainless steel
Very strong and robust
The ring remains in the open position thanks to the friction of the spring, thus facilitating slinging
The ring remains in the rest position (essential in case of parachuting for instance)
The ring is integral with the plate
Maxi load: 70 daN
Download IGS file
FIXATIONMATERIALFINISHTHEORETICAL
WEIGHT
kg/Hundred		REFERENCES
With holesSteelYellow zinc28,100PE 352 ZB*
With holesSteelWhite zinc28,100PE 352 ZI
With holesStainless steelraw28,100PE 352 IB
With holesStainless steelpassivated28,100PE 352 IA*
* Articles made on request
