Flexible SAV toggle latch

  • Flexible Toggle Latches Flexible Sav Toggle Latch 1
  • Flexible Toggle Latches Flexible Sav Toggle Latch 2
Description Technical sheet Supplements
Supplied with or without manual safety lock.
The manual safety lock prevents accidental releasing of the latch.
The link lies flat against the body of the latch when open.
Possibility of sealing.
Can latch onto a catch plate or into a recess in the container lid.
Large surface of the link hook spreads the load on the latch over a large area.
High strength latch.
The manual safety lock prevents accidental releasing of the latch
Possibility of sealing

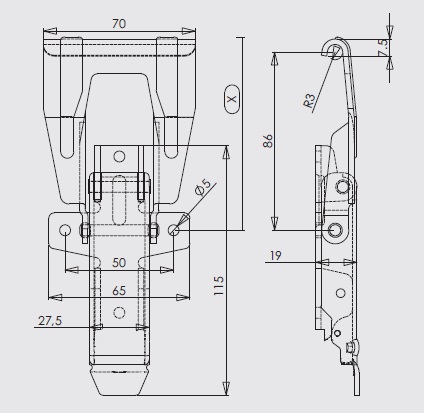

Approximate fixing position to give 300daN tension,
using catch plate AC 178: x = 90mm
Maximum operating tension: 350daN
Maximum operating tension prior to deformation: 450daN
Recommended catch plate: AC 178
Lever: Material thickness 2mm
Base: Material thickness 2.5mm
Links: Material thickness 2.5mm
Download IGS file
MATERIALFINISHFIXATIONTHEORETICAL WEIGHT
KG/HUNDRED
REFERENCES
Steelyellow zincwith holes25,400GE.1000-ZB*
Steelwhite zincwith holes25,400GE.1000-ZI*
Stainless steel 18/8 raw with holes25,400GE.1000-IB
* Articles made on request
