Flexible SAV toggle latch

Home / Catalog / Toggle latches / Catch Plates / Back plates / Flexible Toggle Latches / Flexible SAV toggle latch
  • Flexible Toggle Latches Flexible Sav Toggle Latch 1
  • Flexible Toggle Latches Flexible Sav Toggle Latch 2
Description Technical sheet Supplements
Enclosed model, visually attractive.
Catch plate butts up against base of latch thus pre-determining fixing position.
Latch lies flat in open position minimising risk of accidental damage.
Suitable for screw fixing.
The hook, which rests on the stops of the mounting bracket, automatically determines the mounting distance.
In the open position, the entire toggle latch folds down completely, thus avoiding any risk of damage.
Very attractive appearance.

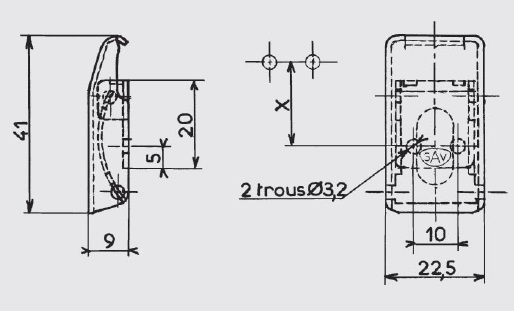

Approximate fixing position to give 45daN tension, using catch plate AC 163
x = 20mm
Recommended Catch Plate: Type AC 163
Lever: Metal Thickness 1.2mm
Base: Metal Thickness type 1.2mm
Download IGS file
MATERIALFINISHFIXATIONTHEORETICAL WEIGHT
KG/HUNDRED		REFERENCES
Steel rawwithout hole1,995GE.66-ABR
Steelrawwith hole1,980GE.66-BR*
Steelwhite zincwith holes1,980GE.66-ZI
Steelyellow zincwith holes1,980GE.66-ZB*
Stainless steel 18/8rawwith holes1,980GE.66-IB
* Articles made on request
