Flexible SAV toggle latch

Home / Catalog / Toggle latches / Catch Plates / Back plates / Flexible Toggle Latches / Flexible SAV toggle latch

Description Technical sheet Supplements

GE 61 without sealing facility.
GE 100 with sealing facility.
Can be used for gripping in groove without use of catch plate.
Curved link gives wider positioning tolerance.
Suitable for screw fixing or welding.

Very flexible in use

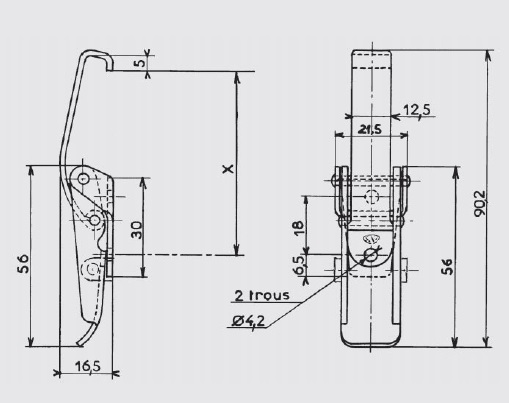

Approximate fixing position to give 50daN tension,
x = 61.3 mm
Maximum operating tension: 70daN
Recommended Catch Plate: Type AC 113
Lever: Metal Thickness 2.0 mm
Base: Metal Thickness 1.5 mm
Link: Metal thickness 1.5 mm

Download IGS file

MATERIAL	FINISH	FIXATION	THEORETICAL WEIGHT kg/HUNDRED	REFERENCES
Steel	raw	with holes	4,400	GE.100-BR*
Steel	raw	without hole	4,440	GE.100-ABR*
Steel	white zinc coating	with holes	4,400	GE.100-ZI
Steel	yellow zinc coating	with holes	4,400	GE.100-ZB*
Stainless steel 18/8	raw	with holes	4,400	GE.100-IB
Stainless steel 18/8	raw	without hole	4,440	GE.100-AIB*

* Articles made on request
