Flexible SAV toggle latch

Home / Catalog / Toggle latches / Catch Plates / Back plates / Flexible Toggle Latches / Flexible SAV toggle latch

Description Technical sheet Supplements

High strength latch.
F49 has a spring safety lock - particularly recommended for equipment subject to vibration
F93 has a padlock hasp and does not have the spring safety lock.
Possibility of sealing.
Can be used to hook over a lid or with a catch plate.
A version with a key lock is available - GE 83

Exceptional tensile strength.
Locks the lever in the closed position, making it highly resistant to vibrations and shocks tending to open the toggle latch.
Possibility of sealing.
Large bearing surface of the hooking lug.
Easy to operate.

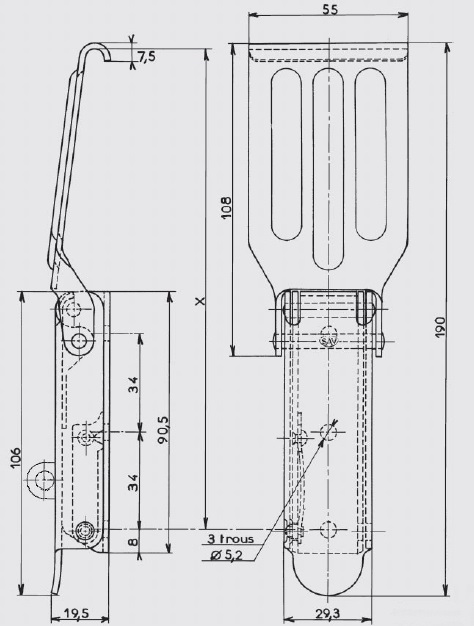

Approximate fixing position to give 275daN tension
x = 168.5mm
Maximum operating tension: 450daN
Recommended catch plate: AC 158 or AC 159
Lever: Material thickness 2mm
Base: Material thickness 2mm
Link: 2mm tempered steel or stainless

Download IGS file

MATERIAL	FINISH	FIXATION	THEORETICAL WEIGHT KG/HUNDRED	REFERENCES
Steel	yellow zinc	with holes	24,500	GE.93-ZB*
Steel	white zinc	with holes	24,500	GE.93-ZI
Stainless steel 18/8	raw	with holes	24,500	GE.93-IB
Stainless steel 18/8	passivated	with holes	24,500	GE.93-IA*

* Articles made on request

Flexible SAV toggle latch

Associated products

Back plate AG.9031 Toggle latch back plates 90x30mm

Catch plate AC.158 - 33x52.5 mm Toggle latch Catch plate

Catch plate AC.159 - 40x52.5 mm Toggle latch Catch plate

Flat head rivet Alu/steel D1.4 to 6.4 Aluminium/Steel Blind rivets
