Flexible SAV toggle latch

Home / Catalog / Toggle latches / Catch Plates / Back plates / Flexible Toggle Latches / Flexible SAV toggle latch
  • Flexible Toggle Latches Flexible Sav Toggle Latch 1
  • Flexible Toggle Latches Flexible Sav Toggle Latch 2
Description Technical sheet Supplements
Extra flat profile, low clearance required.
Easy operation.
Possibility of sealing.
Can be used for gripping in groove without use of catch plate.
Latch folds completely flat when open minimising the risk of accidental damage.
Inverted action.
All pins and assembly rivets in stainless steel 18/8 in all cases.
Extra-flat model

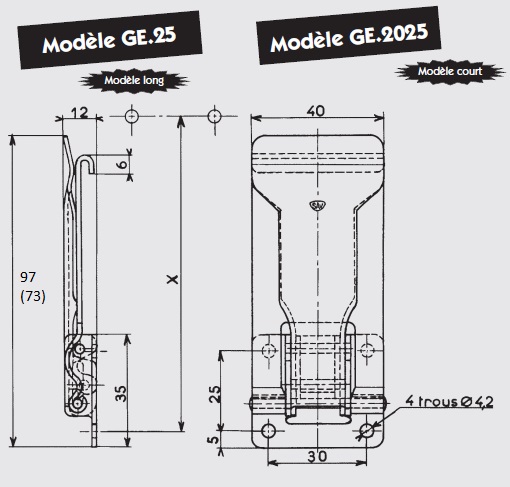

Approximate fixing position to give 100daN tension, using catch plate AC 168
x = 71.3 mm
Maximum operating tension: 130daN
Recommended Catch Plate: Type AC 168
Lever: Metal Thickness 1.5mm
Base: Metal Thickness 1.5 mm
Link: Metal thickness 1.5 mm
Download IGS file
MATERIALFINISHFIXATIONTHEORETICAL
WEIGHT
kg/HUNDRED		REFERENCES
Steelyellow zinc coatingwith holes6,100GE.2025-ZB*
Steelwhite zinc coatingwith holes6,100GE.2025-ZI*
Stainless steel 18/8rawwith holes6,150GE.2025-IB
* Articles made on request
