Adjustable SAV toggle latch

Home / Catalog / Toggle latches / Catch Plates / Back plates / Adjustable Toggle Latches / Adjustable SAV toggle latch
  • Adjustable Toggle Latches Adjustable Sav Toggle Latch 1
  • Adjustable Toggle Latches Adjustable Sav Toggle Latch 2
Description Technical sheet Supplements
High strength .
Thread adjustment accommodates large positional misalignments and can be adjusted in place, making it particularly suitable for use on containers where gaskets may need re-tensioning after time in service.
Spring accommodates small positional misalignments.
Spring allows tension to be gradually applied in closing the latch making easier operation.
Safety pin 360821 manufactured from spring steel secures the lever to the base to prevent accidental unlocking - please order separately.
Top of the range model combining exceptional strength with an economical design.
Possibility of sealing or locking the lever in the closed position with a retaining pin (to be ordered separately)
Tension adjustment during use to compensate for weakened seals.
Incidental adjustment impossible.
Very flexible positioning

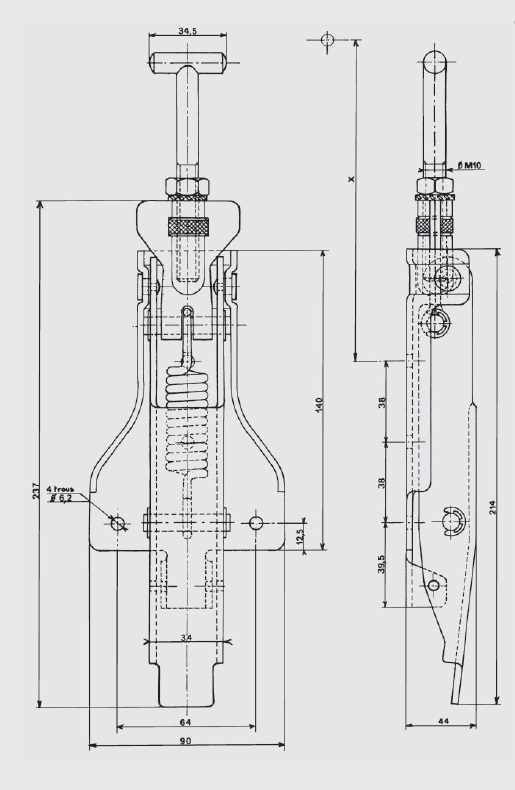

Dimension x varies between 168 mm and 186 mm
Maximum tension in use: 1200daN
Maximum tension before deformation: 1900daN
Recommended catch plate: AC 173
Thread Adjustment 18mm br>Consult us for any material or finish not listed in the table below.
Download IGS file
MATERIALFINISHFIXATIONTHEORETICAL
WEIGHT
kg/HUNDRED		REFERENCES
Steelyellow zinc coatingwith holes81,700GR.99-ZB*
Steelwhite zinc coatingwith holes81,700GR.99-ZI
Stainless steel 18/8rawwith holes81,700GR.99-IB
* Articles made on request
