Toggle latches Spring Loaded

Home / Catalog / Toggle latches / Catch Plates / Back plates / Spring Loaded Toggle Latches / Toggle latches Spring Loaded
  • Spring Loaded Toggle Latches Toggle Latches Spring Loaded 1
  • Spring Loaded Toggle Latches Toggle Latches Spring Loaded 2
Description Technical sheet Supplements
Type GP 75 has manual safety lock.
Type GP 29 has spring safety lock.
Possibility of sealing.
Spring mechanism gives wide positioning tolerance.
Fail safe design prevents over extension of links
High strength for a spring-loaded toggle
Integral locking of the lever on the bracket: by ball and leaf spring (GP.29) and retractable lever (GP.75 ).
Easy operation of the release lever.
Possibility of sealing.
A variant equipped with a valve allows automatic decompression when the toggle is opened.
Large spring travel.
Large positioning tolerances.
Specially recommended in case of absence of seal.

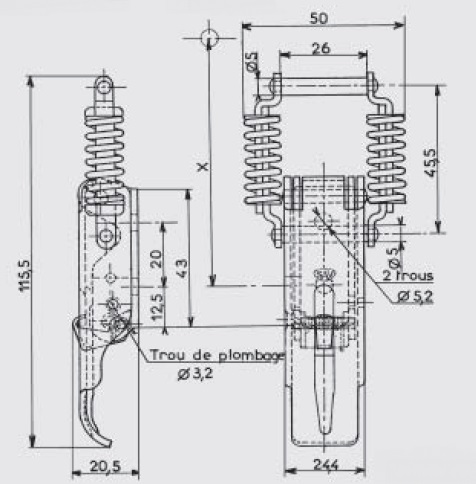

Approximate fixing position to give 55daN tension using catch plate AC 144
x = 82.5 mm
Maximum operating tension: 75daN
Recommended Catch Plate: Type AC 144 or AC 122
Lever: Metal Thickness 2.0 mm
Base: Metal Thickness 2.0 mm
Links (Exterior and interior): Metal Thickness 2.0 mm
Springs: 2 mm diameter piano wire, steel or stainless steel 18/8
Locking pin: 5 mm diameter stainless steel 18/8 in all cases.
Download IGS file
MATERIALFINISHFIXATIONTHEORETICAL WEIGHT
KG/HUNDRED		REFERENCES
Steelyellow zinc platedwith holes12,000GP.75-ZB*
Steelwhite zinc platedwith holes12,000GP.75-ZI
Stainless steel 18/8 rawwith holes12,000 GP.75-IB
Stainless steel 18/8 passivatedwith holes12,000 GP.75-IA
* Articles made on request
