Steel/Steel Blind rivets
Home
/
Catalog
/
Fasteners locks : 1/4 turns / Blind Rivets
/
Standard Blind Rivets
/ Steel/Steel Blind rivets
Description
Technical sheet
PAINTED RIVETS: CONSULT US
D2.9:for holes D3.1 (R.cut: 1100N - R.stretch: 1200N)
D3.2:for holes D3.3 (R.cut: 1300N - R.stretch: 1650N)
D3.4:for holes D3.5 (R.cut: 1500N - R.stretch: 1900N)
D4:for holes D4.1 (R.cut: 2000N - R.stretch: 2300N)
D4.8:for holes D5 (R.cut: 3000N - R.stretch: 3700N)
D5:for holes D5.1 (R.cut: 3000N - R.stretch: 3700N)
D5.9:for holes D6.1 (R.cut: 5000N - R.stretch: 5500N)
D6.4:for holes D6.5 (R.cut: 5600N - R.stretch: 5700N)

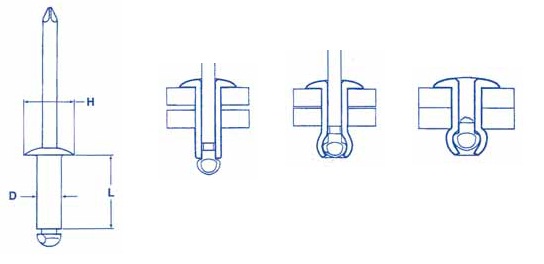

D
L
H
GRIP RANGE
REFERENCES
2.9
5
6.5
0.5 to 2.5
AC/AC 29 50
2.9
6
6.5
2.5 to 3.5
AC/AC 29 60
2.9
7
6.5
3.5 to 4.5
AC/AC 29 70
2.9
8
6.5
4.5 to 5.5
AC/AC 29 80
2.9
9
6.5
5.5 to 6.5
AC/AC 29 90
2.9
10
6.5
7 to 8
AC/AC 29 100
2.9
11
6.5
7 to 8
AC/AC 29 110
2.9
12
6.5
8 to 9
AC/AC 29 120
3.2
6
6.5
0.5 to 3.5
AC/AC 32 60
3.2
7
6.5
3.5 to 4.5
AC/AC 32 70
3.2
8
6.5
4.5 to 5.5
AC/AC 32 80
3.2
9
6.5
5 to 6
AC/AC 32 90
3.2
10
6.5
6 to 7
AC/AC 32 100
3.2
11
6.5
7 to 8
AC/AC 32 110
3.2
12
6.5
8 to 9
AC/AC 32 120
3.4
6
6.5
1.5 to 2.5
AC/AC 34 60
3.4
7
6.5
2.5 to 3.5
AC/AC 34 70
3.4
8
6.5
3.5 to 4.5
AC/AC 34 80
3.4
9
6.5
4 to 5
AC/AC 34 90
3.4
10
6.5
5 to 6
AC/AC 34 100
3.4
11
6.5
6 to 7
AC/AC 34 110
3.4
12
6.5
7 to 8.5
AC/AC 34 120
4
6
8
1.5 to 3
AC/AC 40 60
4
7
8
3 to 4
AC/AC 40 70
4
8
8
4 to 5
AC/AC 40 80
4
9
8
5 to 6
AC/AC 40 90
4
10
8
6 to 6.5
AC/AC 40 100
4
11
8
6.5 to 7.5
AC/AC 40 110
4
12
8
7.5 to 8.5
AC/AC 40 120
4
14
8
8.5 to 10.5
AC/AC 40 140
4
16
8
10.5 to 12.5
AC/AC 40 160
4
18
8
12.5 to 14.5
AC/AC 40 180
4
20
8
14.5 to 16.5
AC/AC 40 200
4
25
8
17.5 to 21.5
AC/AC 40 250
4
30
8
21.5 to 26
AC/AC 40 300
4.8
6
9.5
0.5 to 2.5
AC/AC 48 60
4.8
7
9.5
2.5 to 3.5
AC/AC 48 70
4.8
8
9.5
3.5 to 4
AC/AC 48 80
4.8
9
9.5
4 to 5
AC/AC 48 90
4.8
10
9.5
5 to 6
AC/AC 48 100
4.8
11
9.5
6 to 7
AC/AC 48 110
4.8
12
9.5
7 to 8
AC/AC 48 120
4.8
14
9.5
8 to 10
AC/AC 48 140
4.8
16
9.5
10 to 12
AC/AC 48 160
4.8
18
9.5
12 to 14
AC/AC 48 180
4.8
20
9.5
14 to 16
AC/AC 48 200
4.8
25
9.5
18 to 21
AC/AC 48 250
4.8
30
9.5
23 to 25
AC/AC 48 300
5
6
9.5
0.5 to 2.5
AC/AC 50 60
5
7
9.5
2.5 to 3.5
AC/AC 50 70
5
8
9.5
3.5 to 4
AC/AC 50 80
5
9
9.5
4 to 5
AC/AC 50 90
5
10
9.5
5 to 6
AC/AC 50 100
5
11
9.5
6 to 7
AC/AC 50 110
5
12
9.5
7 to 8
AC/AC 50 120
5
14
9.5
8 to 10
AC/AC 50 140
5
16
9.5
10 to 12
AC/AC 50 160
5
18
9.5
12 to 14
AC/AC 50 180
5
20
9.5
14 to 16
AC/AC 50 200
5
25
9.5
18 to 21
AC/AC 50 250
5
30
9.5
23 to 25
AC/AC 50 300
5.9
10
12
3 to 4
AC/AC 59 100
5.9
12
12
4 to 6
AC/AC 59 120
5.9
14
12
6 to 8
AC/AC 59 140
5.9
16
12
8 to 11
AC/AC 59 160
5.9
18
12
11 to 13
AC/AC 59 180
5.9
20
12
13 to 15
AC/AC 59 200
5.9
22
12
15 to 17
AC/AC 59 220
5.9
25
12
17 to 20
AC/AC 59 250
5.9
30
12
20 to 24
AC/AC 59 300
6.4
10
13
0.5 to 2
AC/AC 64 100
6.4
12
13
2 to 6
AC/AC 64 120
6.4
14
13
6 to 8
AC/AC 64 140
6.4
16
13
8 to 10
AC/AC 64 160
6.4
18
13
10 to 12
AC/AC 64 180
6.4
20
13
12 to 14
AC/AC 64 200
6.4
22
13
14 to 16
AC/AC 64 220
6.4
25
13
16 to 18
AC/AC 64 250
* Articles made on request
