Stainless steel/Stainless steel blind rivets large and extra-large heads

Home / Catalog / Fasteners locks : 1/4 turns / Blind Rivets / Large and Extra-Large Blind Rivets / Stainless steel/Stainless steel blind rivets large and extra-large heads

Technical sheet

D4.8:for holes D5 (R.cut: 5200N - R.stretch: 6000N)

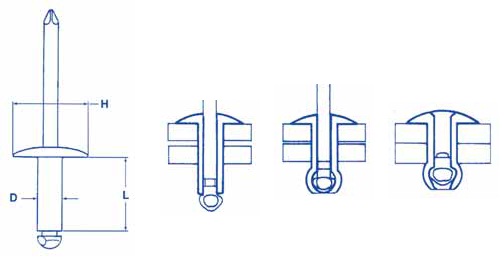

D	L	H	GRIP RANGE	REFERENCES
4.8	10	14	3.5 to 5.5	INTL/IN 48 100
4.8	12	14	5.5 to 7.5	INTL/IN 48 120
4.8	14	14	7.5 to 9.5	INTL/IN 48 140
4.8	16	14	9.5 to 11.5	INTL/IN 48 160
4.8	18	14	11.5 to 13.5	INTL/IN 48 180

* Articles made on request
