Riveted link gives great strength.
Supplied with or without spring safety lock - particularly suitable for equipment liable to vibration.
Supplied with or without padlock hasp.
Possibility of sealing.
Suitable for screw fixing or welding. Spring safety lock requires positive action to release latch.
A key lockable version is available - please ask for details of type GO 1032
Great robustness
Possibility of sealing

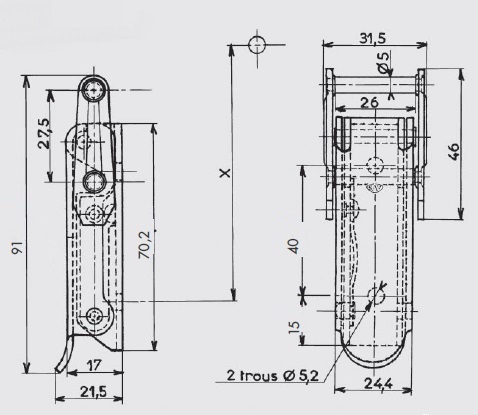

Approximate fixing position to give 150daN tension, using catch plate AC 157
x = 94mm
Maximum operating tension: 250daN
Recommended Catch Plates: Type AC 156 of AC 157
Lever: Metal Thickness 2.0mm
Base: Metal Thickness type 2.0mm
Link: 5mm diameter wire, welded
