Retractable handle

Home / Catalog / Miscellaneous latches / Swing Handles / Retractable handle
  • Swing Handles Retractable Handle 1
  • Swing Handles Retractable Handle 2
Description Technical sheet
Retractable handles for cupboard and door locks
short tapped square for flat rods with cremone box sold separately
Available in several materials and finishes

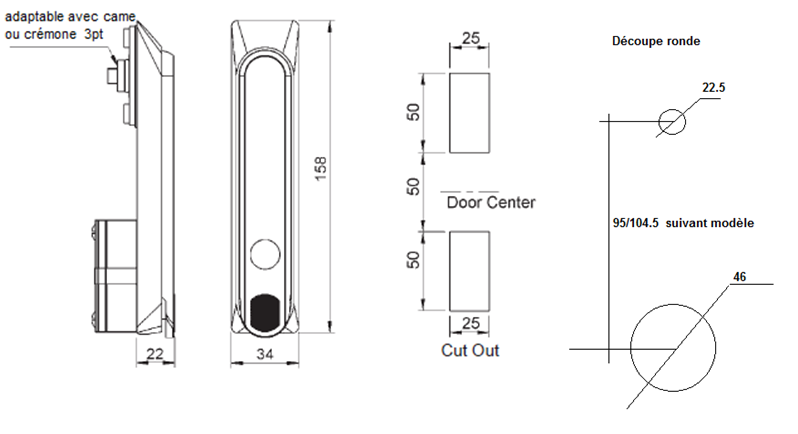

2 types of panel cuts: rectangles and rounds
Download IGS file
MATERIALFINITIONLOCKING TYPECUTTING TYPEFIXING THE CAMEREFERENCE
ZamakChrome platedWithoutRound center distance 95Square 8 + screwPS.95- CH*
ZamakBlackWith key N°1333Rectangle center distance 50Square of 8 threaded lg 44mmPS.CL1333-50-EPN
PolyamidBlackPadlock holderRound center distance 105Square of 8 + screwsPS.PC-105. PO*
PolyamidBlack7mm triangle half cylinderRectangle center distance 508 square + screwsPS.CYTR7-50.PO*
PolyamidBlackNo. 1242 key half cylinderRectangle center distance 508 square + screwsPS.CY1242-50.PO*
* Articles made on request
