Machine stand Diam 60mm

Home / Catalog / Various accessories / Levelling base / Machine stand Diam 60mm
  • Levelling base Machine Stand Diam 60mm 1
  • Levelling base Machine Stand Diam 60mm 2
Description Technical sheet

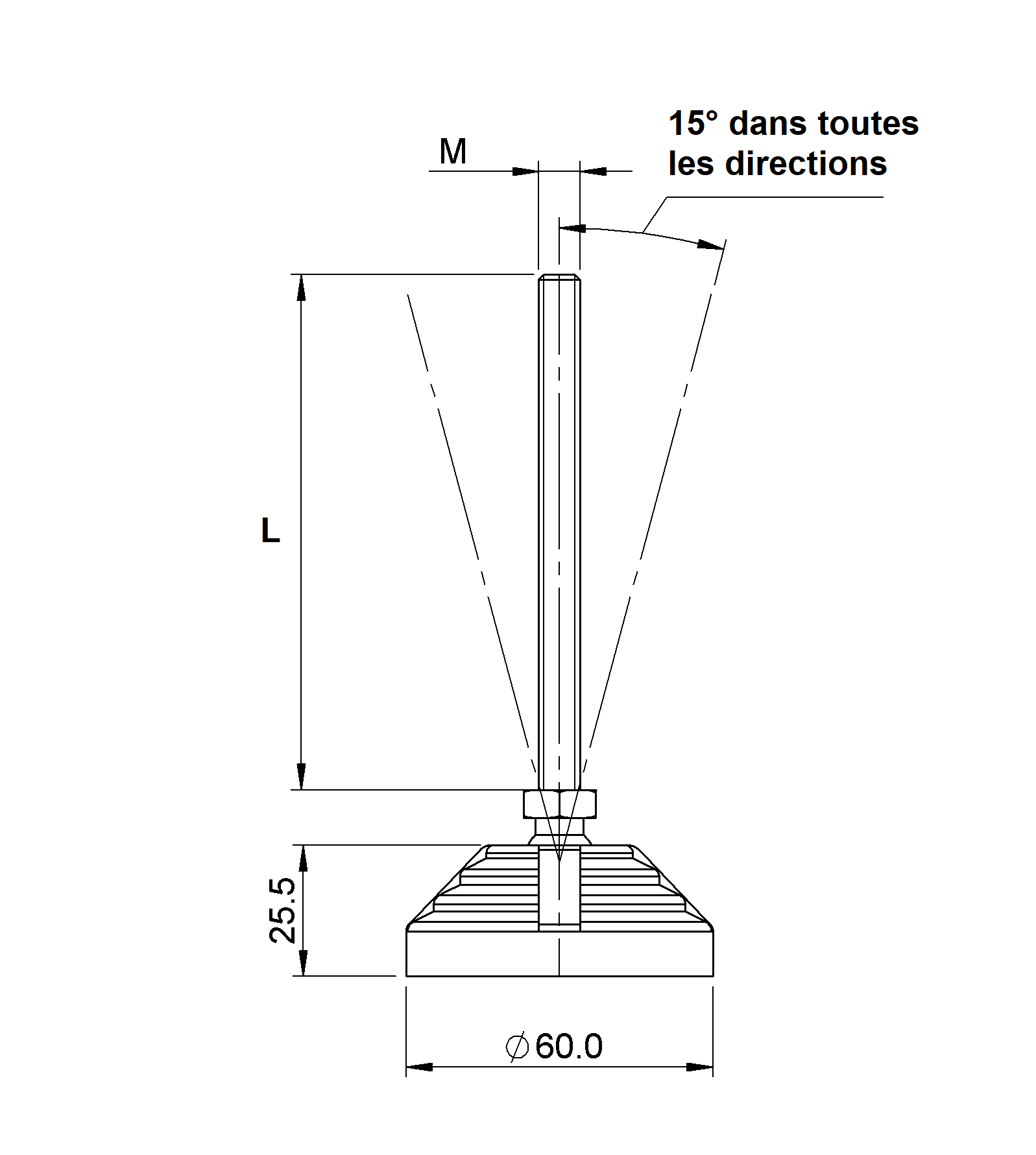

Adjustable machine foot with ball joint.
Tilting cone possible over 15°
Wide seat for perfect stability
Stud : zinc plated or Stainless steel
Base : Polyamid
Pad : rubber
STUDS DIAMETERLENTGH(mm)FINISHREFERENCES
M860Stainless SteelPM-60-0850.IPO*
M868Zinc plated SteelPM-60-0868.PO*
M8100Zinc plated SteelPM-60-08100.PO*
M1068Zinc plated SteelPM-60-1068.PO
M10100Zinc plated SteelPM-60-10100.PO*
M10100Stainless SteelPM-60-10100.IPO*
M10120Zinc plated SteelPM-60-10120.PO*
M10140Stainless SteelPM-60-10140.IPO*
M10180Zinc plated SteelPM-60-10180.PO*
M1268Zinc plated SteelPM-60-1268.PO*
M1280Zinc plated SteelPM-60-1280.PO*
M12100Zinc plated SteelPM-60-12100.PO*
M12100Stainless SteelPM-60-12100.IPO*
M1668Zinc plated SteelPM-60-1668.PO*
M16100Zinc plated SteelPM-60-16100.PO*
M16100Stainless SteelPM-60-16100.IPO*
M16140Zinc plated SteelPM-60-16140.PO*
M16160Zinc plated SteelPM-60-16160.PO*
M20100Zinc plated SteelPM-60-20100.PO*
M20100Stainless SteelPM-60-20100.IPO*
M20160Zinc plated SteelPM-60-20160.PO*
M20160Stainless SteelPM-60-20160.IPO*
* Articles made on request
