Aluminium/Steel peel blind rivets

Home / Catalog / Fasteners locks : 1/4 turns / Blind Rivets / Split Rivets / Aluminium/Steel peel blind rivets

Description Technical sheet Supplements

Recommended for soft materials: plastic, wood

D4:for holes D4.2 (R.cut: 1400N - R.stretch: 2000N)
D4.8:for holes D5 (R.cut: 2000N - R.stretch: 2700N)
D5:for holes D5.2 (R.cut: 2000N - R.stretch: 2700N)

PAINTED RIVETS: CONSULT US

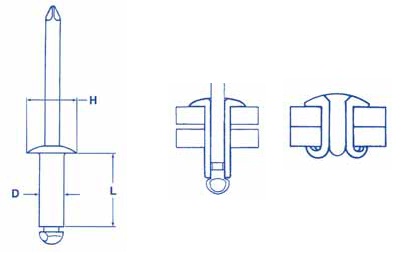

D	L	H	GRIP RANGE	REFERENCES
4	8	8	1.5 to 3	ALG/AC 40 80
4	10	8	2.5 to 5	ALG/AC 40 100
4	12	8	4.5 to 6.5	ALG/AC 40 120
4	14	8	6 to 8	ALG/AC 40 140
4	16	8	7.5 to 10	ALG/AC 40 160
4	18	8	9 to 12	ALG/AC 40 180
4	20	8	11.5 to 14	ALG/AC 40 200
4	25	8	13.5 to 15	ALG/AC 40 250
4.8	10	9.5	1 to 5	ALG/AC 48 100
4.8	12	9.5	4.5 to 7	ALG/AC 48 120
4.8	14	9.5	6.5 to 9	ALG/AC 48 140
4.8	16	9.5	8.5 to 10	ALG/AC 48 160
4.8	18	9.5	9.5 to 12	ALG/AC 48 180
4.8	20	9.5	11.5 to 14	ALG/AC 48 200
4.8	25	9.5	13.5 to 19	ALG/AC 48 250
4.8	30	9.5	18.5 to 23	ALG/AC 48 300
4.8	40	9.5	30 to 35	ALG/AC 48 400
4.8	50	9.5	40 to 45	ALG/AC 48 500
4.8	55	9.5	45 to 50	ALG/AC 48 550
4.8	60	9.5	50 to 55	ALG/AC 48 600
4.8	70	9.5	60 to 65	ALG/AC 48 700
4.8	80	9.5	70 to 75	ALG/AC 48 800
4.8	90	9.5	75 to 80	ALG/AC 48 900
4.8	100	9.5	85 to 90	ALG/AC 48 1000
4.8	110	9.5	95 to 105	ALG/AC 48 1100
4.8	120	9.5	105 to 115	ALG/AC 48 1200
50	10	9.5	1 to 5	ALG/AC 50 100
5	12	9.5	4.5 to 7	ALG/AC 50 120
5	14	9.5	6.5 to 9	ALG/AC 50 140
5	16	9.5	8.5 to 10	ALG/AC 50 160
5	18	9.5	9.5 to 12	ALG/AC 50 180
5	20	9.5	11.5 to 14	ALG/AC 50 200
5	25	9.5	13.5 to 19	ALG/AC 50 250
5	30	9.5	18.5 to 23	ALG/AC 50 300
5	40	9.5	30 to 35	ALG/AC 50 400
5	50	9.5	40 to 45	ALG/AC 50 500
5	55	9.5	45 to 50	ALG/AC 50 550
5	60	9.5	50 to 55	ALG/AC 50 600
5	70	9.5	60 to 65	ALG/AC 50 700
5	80	9.5	70 to 75	ALG/AC 50 800
5	90	9.5	75 to 80	ALG/AC 50 900
5	100	9.5	85 to 90	ALG/AC 50 1000
5	110	9.5	95 to 105	ALG/AC 50 1100
5	120	9.5	105 to 115	ALG/AC 50 1200

* Articles made on request
