1/4 turn with winged head - 10mm diameter

Home / Catalog / Fasteners locks : 1/4 turns / Blind Rivets / 1/4 turn / 1/4 turn with winged head - 10mm diameter
  • 1/4 turn 1/4 Turn With Winged Head - 10mm Diameter 1
  • 1/4 turn 1/4 Turn With Winged Head - 10mm Diameter 2
Description Technical sheet Supplements

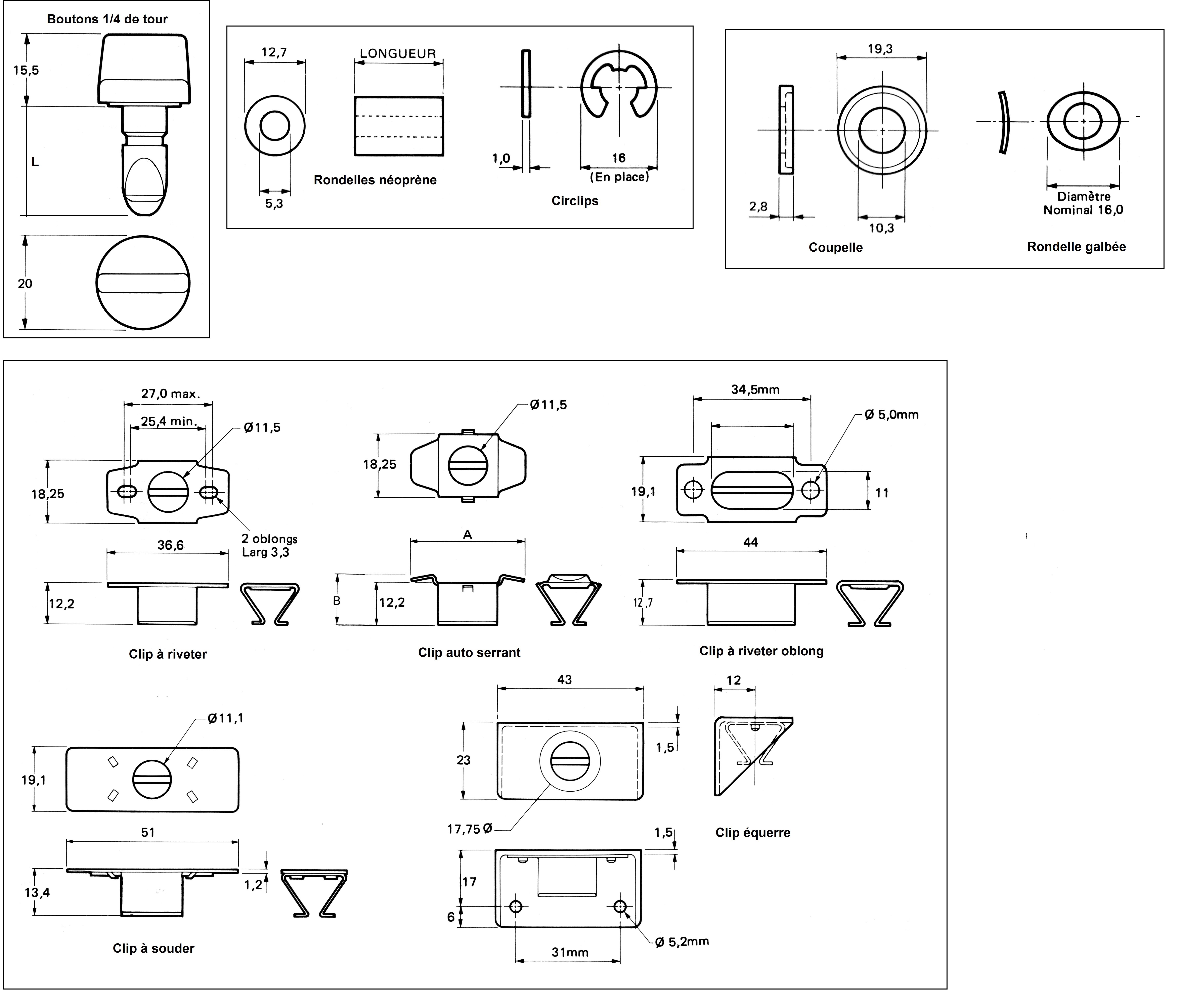

The Oddie ¼ turn lock is a quick opening device type DZUS. It consists of a button, held on the removable part by a holding device, and a clip mounted on the fixed part
A quarter turn of the button opens the device and simply push it into the clip to close it
Maximum recommended working tension: 1000 Newtons
Maximum working temperature: 200°C
Please remember to order at least the button and the clip. (optional holding system and accessories)
Maximum clamping capacity of the button=XXX (for XXX=2 L=17.5mm, for XXX=3 L= 18.5mm....)
TYPEMATERIALFINISHTIGHTENING SIDEREFERENCE
Winged head buttonSteelWhite zinc coating2mmODR.110002.ZI
Winged head buttonSteelWhite zinc coating...XXXmmODR.110XXX.ZI
Winged head buttonSteelChrome plated2mmODR.110002.CH
Winged head buttonSteelChrome plated...XXXmmODR.110XXX.CH
Winged head button SteelBlack xylan2mmODR.110002.XN
Winged head buttonSteelBlack xylan...XXXmmODR.110XXX.XN
BUTTON HOLDING
TYPEMATERIALFINISHLenghtREFERENCE
WasherNeopreneBlack2mmODR.300002.HN
WasherNeopreneBlack3mmODR.300003.HN
WasherNeopreneBlack...10mmODR.300010.HN
CirclipsSteelZinc coating-ODR.320000.ZB
CLIPS
TYPEMATERIALFINISHFor thicknessREFERENCE
Riveting clipSpring steelBlack xylan-ODR.200000.XN
Oblong riveting clipSpring steelDacromet-ODR.200100.DA
Welding clip Spring steelBlack xylan-ODR.220000.XN
Clip on bracketSpring steel + ZamakBlack xylan+ Zinc-ODR.230000.XN
Self-tightening clip(A=33.8/B=14.4)Spring steelBlack xylan1.2 to 1.69mmODR.210100.XN
Self-tightening clip(A=32.4/B=15.3)Spring steelBlack xylan1.7 to 2.89mmODR.210200.XN
Self-tightening clip (A=29.1/B=16.8)Spring steelBlack xylan2.9 to 3.69mmODR.210300.XN
OPTIONS
TYPEMATIERIALFINISH-REFERENCE
CupNylonBlack-ODR.390100.HN
Curved washerStainless steel springraw-ODR.390200.IB
* Articles made on request
