1/4 turn - Complete lock rectangular head - pin 5mm

Home / Catalog / Cam locks (1/4 turn latch) / 1/4 turn latches - Inserts with indentations / 1/4 turn - Complete lock rectangular head - pin 5mm
  • 1/4 turn latches - Inserts with indentations 1/4 Turn - Complete Lock Rectangular Head - Pin 5mm 1
  • 1/4 turn latches - Inserts with indentations 1/4 Turn - Complete Lock Rectangular Head - Pin 5mm 2
Description

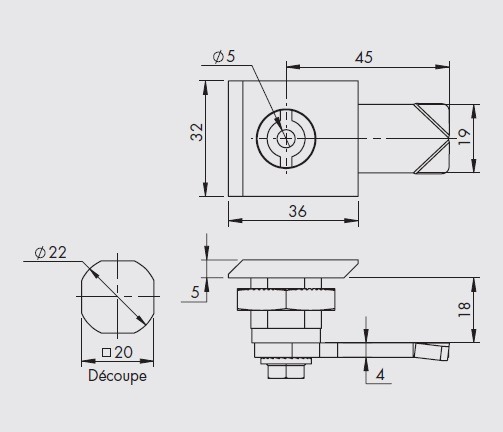

Cam lock or 1/4 turn bolt rectangular head 5mm double bar recess (with white zinc plated steel flat cam) H=18

All cam heights on request
GDSTSTHREADINGMATERIALFINISHREFERENCE
183268M22x1.5PolyamidGreyVE.TE5R-H18.GPO*
* Articles made on request
