1/4 turn hexagon head - 4mm diameter

Home / Catalog / Fasteners locks : 1/4 turns / Blind Rivets / 1/4 turn / 1/4 turn hexagon head - 4mm diameter
  • 1/4 turn 1/4 Turn Hexagon Head - 4mm Diameter 1
  • 1/4 turn 1/4 Turn Hexagon Head - 4mm Diameter 2
Description Technical sheet Supplements

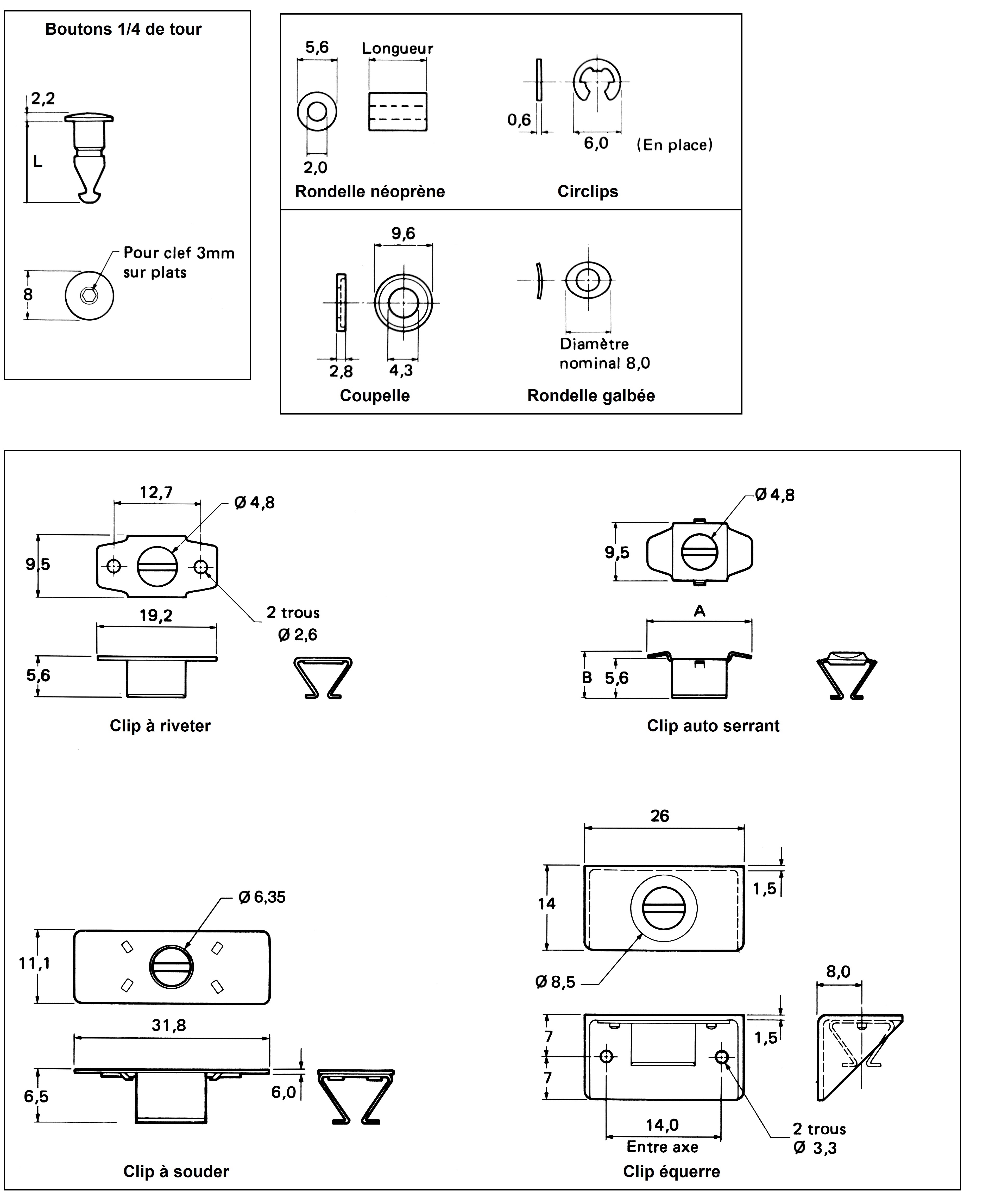

The Oddie ¼ turn lock is a quick opening device type DZUS. It consists of a button, held on the removable part by a holding device, and a clip mounted on the fixed part
A quarter turn of the button opens the device and simply push it into the clip to close it
Maximum recommended working tension: 300 Newtons
Maximum working temperature: 200°C
Please remember to order at least the button and the clip. (optional holding system and accessories)
Maximum clamping capacity of the button=XXX (for XXX=2 L=17.5mm, for XXX=3 L= 18.5mm....)
TYPEMATERIALFINISHTIGHTENING SIDEREFERENCE
Hexagon socket head buttonSteelWhite zinc coating2mmODR.144002.ZI
Hexagon socket head buttonSteelWhite zinc coating...XXXmmODR.144XXX.ZI
Hexagon socket head buttonSteelChrome plated2mmODR.144002.CH
Hexagon socket head buttonSteelChrome plated...XXXmmODR.144XXX.CH
Hexagon socket head buttonSteelBlack xylan2mmODR.144002.XN
Hexagon socket head buttonSteelBlack xylan...XXXmmODR.144XXX.XN
BUTTON HOLDING
TYPEMATERIALFINISHLenghtREFERENCE
WasherNeopreneBlack2mmODR.304002.HN
WasherNeopreneBlack3mmODR.304003.HN
WasherNeopreneBlack...10mmODR.304010.HN
CirclipsSteelZinc coating-ODR.324000.ZB
CLIPS
TYPEMATERIALFINISHFor thicknessREFERENCE
Riveting clipSpring steelBlack xylan-ODR.204000.XN
Welding clipSpring steelBlack xylan-ODR.224000.XN
Clip on bracketSpring steel + ZamakBlack xylan + Zinc-ODR.234000.XN
Self-tightening clip(A=18.9/B=6.7)Spring steelBlack xylan0.5 to 0.99mmODR.214100.XN
Self-tightening clip (A=17.5/B=7.2)Spring steelBlack xylan1 to 1.69mmODR.214200.XN
Self-tightening clip(A=16.9/B=8)Spring steelBlack xylan1.7 to 2.39mmODR.214300.XN
OPTIONS
TYPEMATERIALFINISH-REFERENCE
CupNylonBlack-ODR.394100.HN
Curved washerStainless steel springraw-ODR.394200.IB
* Articles made on request
